A plug-in gateway for NMEA 2000 and SeaTalk NG. Control a compatible Raymarine Evolution/SPX, Simrad TP22/TP32 or B&G NAC autopilot from your watch, phone or the included 6-button remote, and stream live boat data over Wi-Fi and Bluetooth.
- Wireless autopilot control from the remote, phone, tablet or watch
- Streams SeaTalk NG / NMEA 2000 data to the Nauti-Control apps and navigation software
- Standard N2K male M12 (DeviceNet) port — use your own spur or add a cable at checkout
- Fits an existing NMEA 2000 or SeaTalk NG backbone
Wireless boat data
Phone, tablet, laptop and watch.
Autopilot control
Standby, Auto, Wind, Track and 1° / 10°, where the pilot supports those modes.

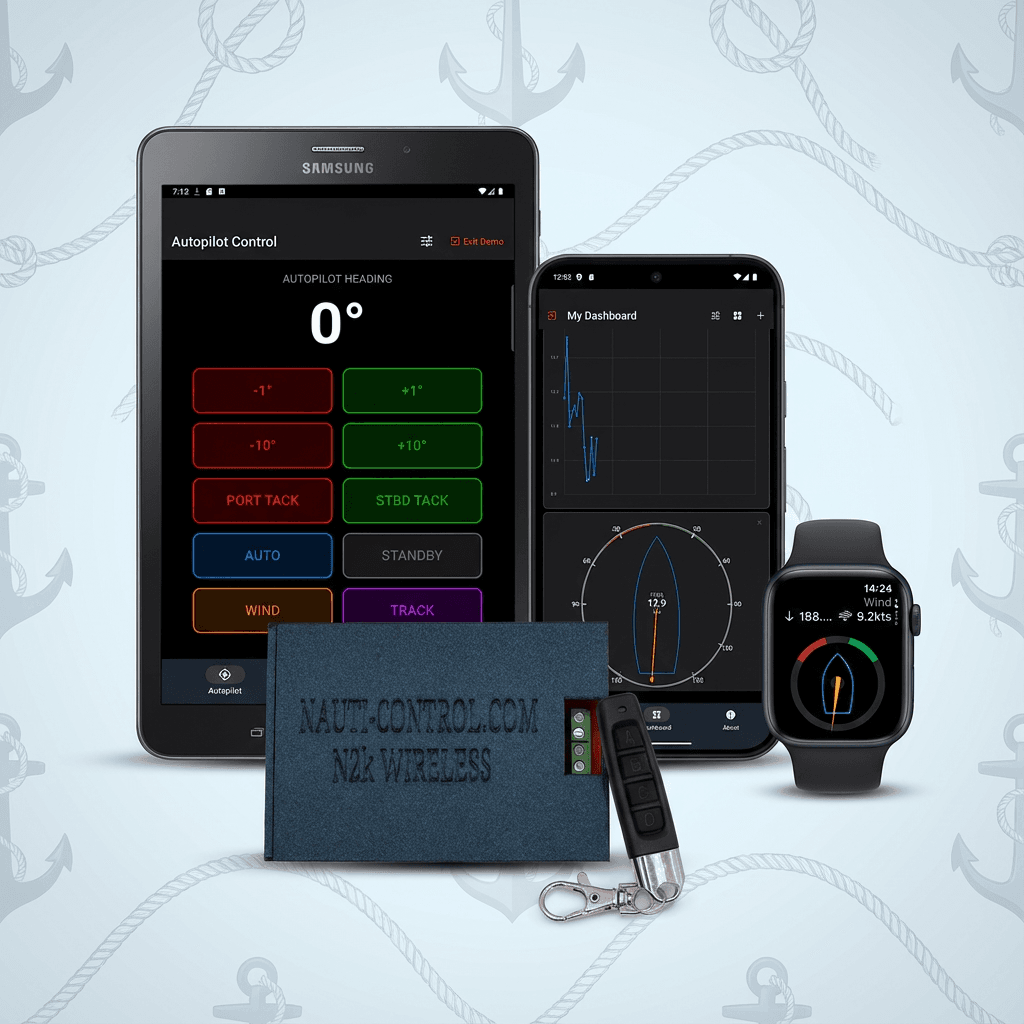

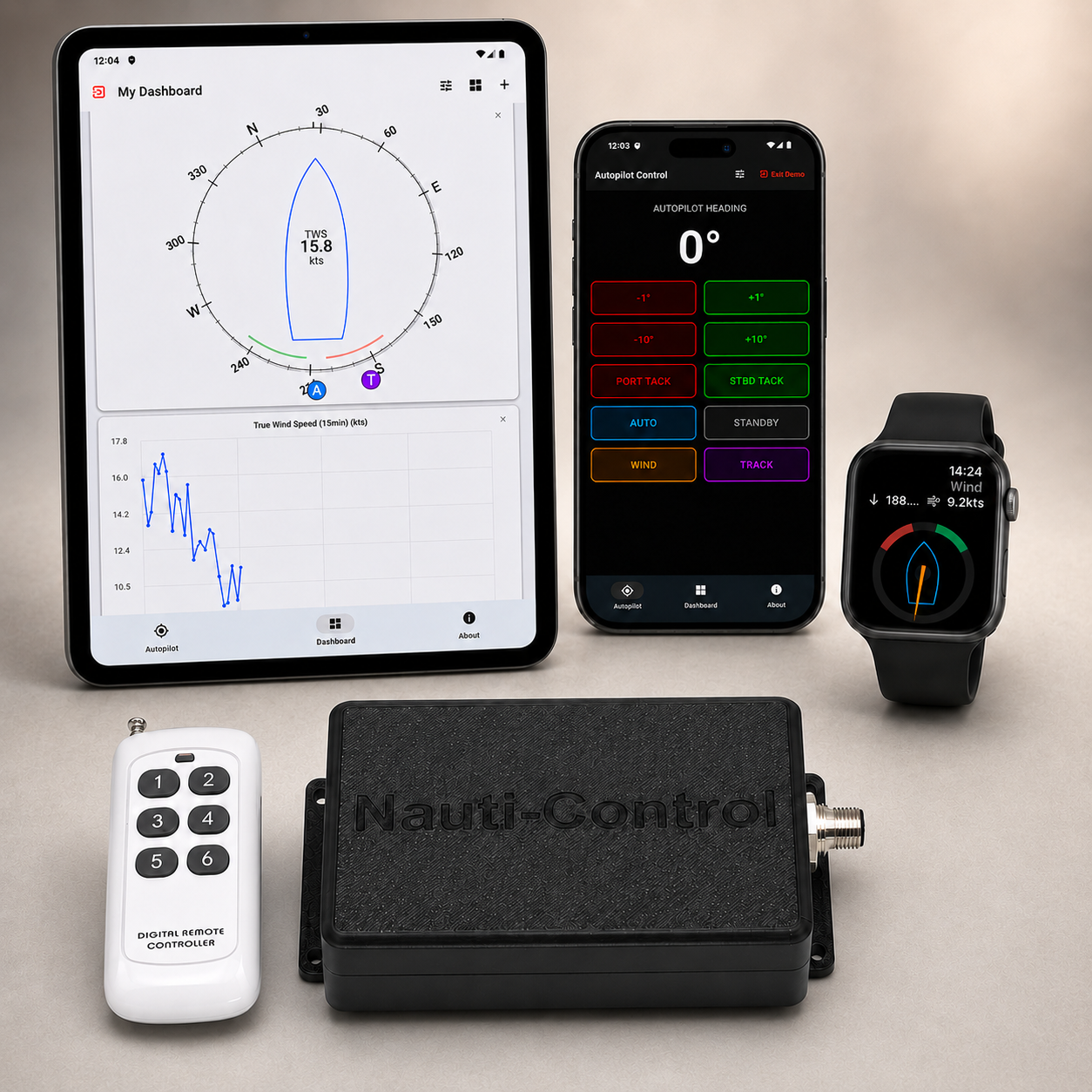

Phone, tablet and watch
iPhone, iPad, Android, Garmin, Apple Watch and Wear OS. The watch talks to the box over Bluetooth.
What data is available?
Live data from the SeaTalk NG / NMEA 2000 network, sent over Wi-Fi, Bluetooth and NMEA 0183 TCP.
Autopilot and control
- Mode and status (Auto / Standby)
- Locked heading and commanded course
- Course adjustments (1° and 10°)
- Engage and disengage
- Pilot availability and network status
Heading, speed and depth
- Compass heading
- Speed through water (STW)
- Speed over ground (SOG)
- Depth below transducer
Wind
- Apparent wind angle
- Apparent wind speed
GPS and navigation
- Position (latitude / longitude)
- Course over ground (COG)
- Altitude
- GPS fix quality, satellite count and HDOP
Waypoint and route
- Cross-track error (XTE)
- Waypoint bearing and distance
- Destination bearing and range
- Arrival status
AIS
- Other vessel identity (MMSI, name, callsign)
- Position, SOG, COG and heading
- Own-vessel AIS (VDO) and traffic (VDM)
- Relay via NMEA TCP (port 8091)
Compatible autopilots and networks
Works on SeaTalk NG and standard NMEA 2000. SimNet data needs a SimNet to NMEA 2000 adapter. Control depends on the messages on the connected network.
NMEA 2000 / SeaTalk NG autopilots
- Raymarine EV-100 Tiller, Wheel and Power Pilots
- Raymarine EV-150 / EV-200 / EV-300 / EV-400 Autopilot Packs
- Raymarine SPX-5, SPX-10, SPX-30, SPX-30 and SPX-Solenoid (Important Raymarine controller must be on firmware V3.05)
- Simrad TP22 / TP32 (HR 22 emulation)
- Simrad NAC-1, NAC-2, NAC-3, AC12, AC42, SG05, AC70
- B&G Triton / Triton², H5000, NAC-1, NAC-2 and NAC-3
- Lowrance Outboard Pilot and Drive Pilot
Networks
- Standard NMEA 2000 backbones (data monitoring)
- SimNet via a SimNet to NMEA 2000 adapter
- Compatible software that receives NMEA 2000 or NMEA TCP data
Classic SeaTalk pilots
ST1000+, ST2000+ and other SeaTalk 1 heads need a SeaTalk to SeaTalk NG adapter. If the boat is SeaTalk 1 only, use ST Wireless.

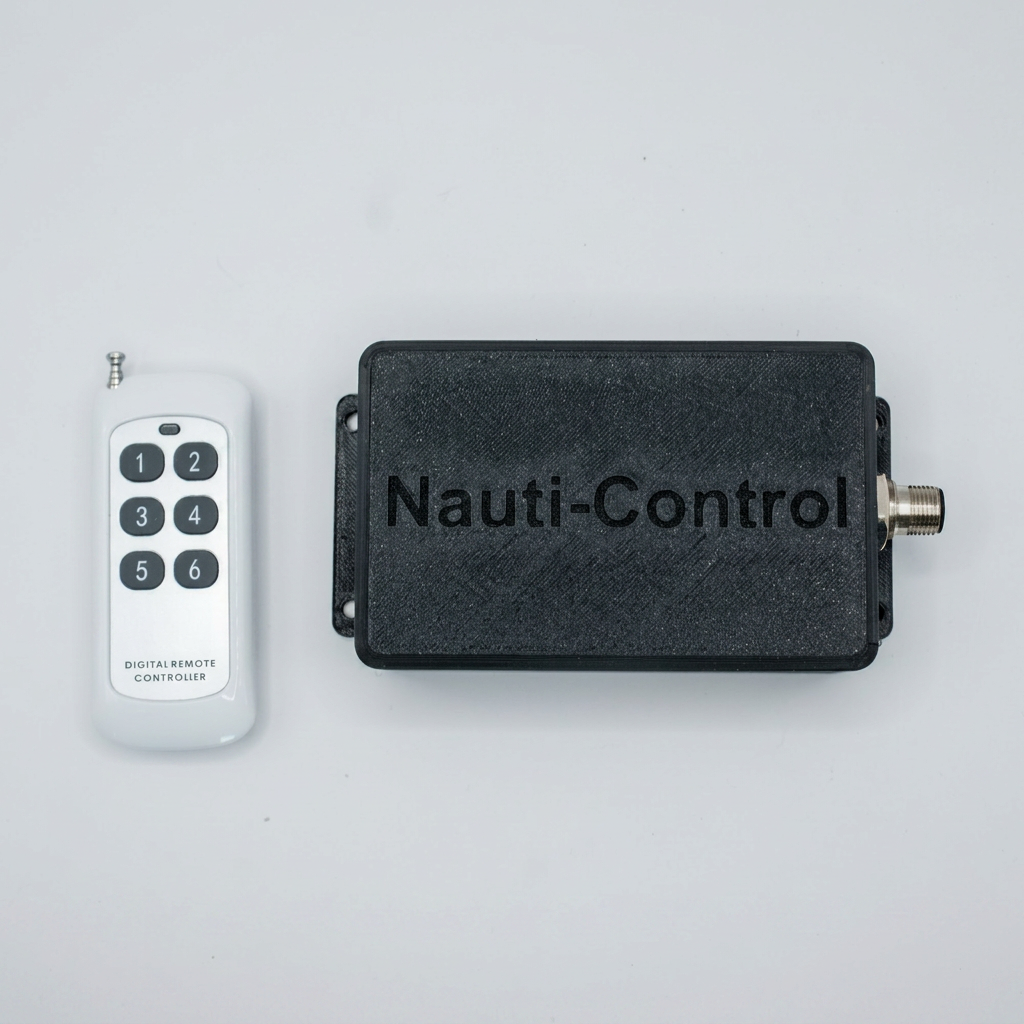

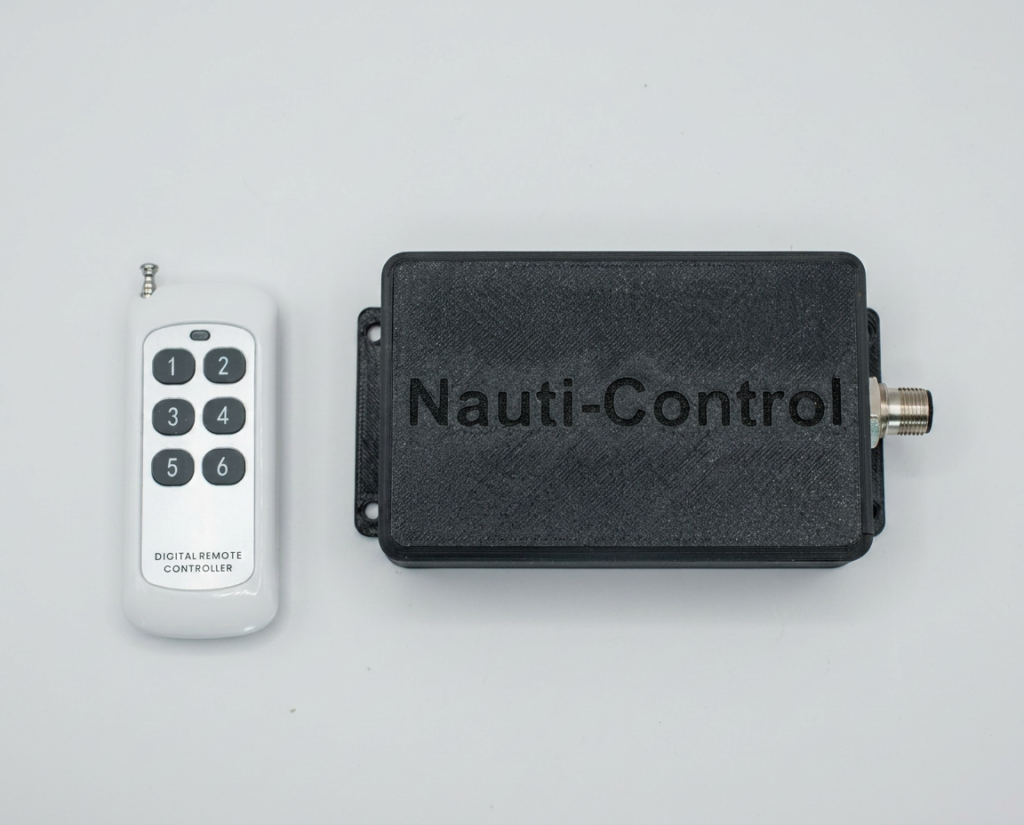

What is included
- N2K Wireless Controller
- 6-button fixed random code remote
- M12 male DeviceNet port — add a DeviceNet or STNG cable at checkout if you need one
Supplementary control only. The skipper stays responsible for the vessel.

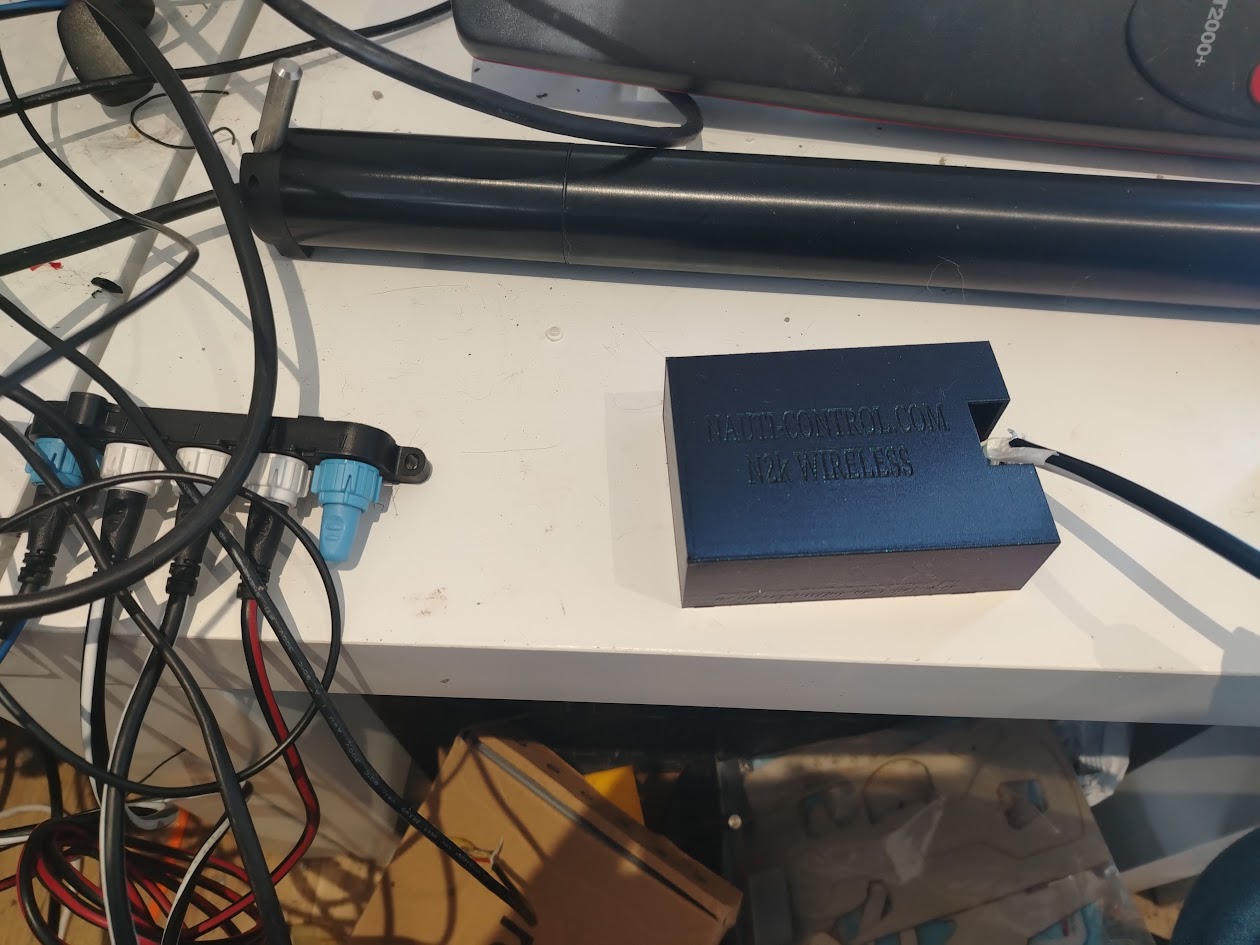

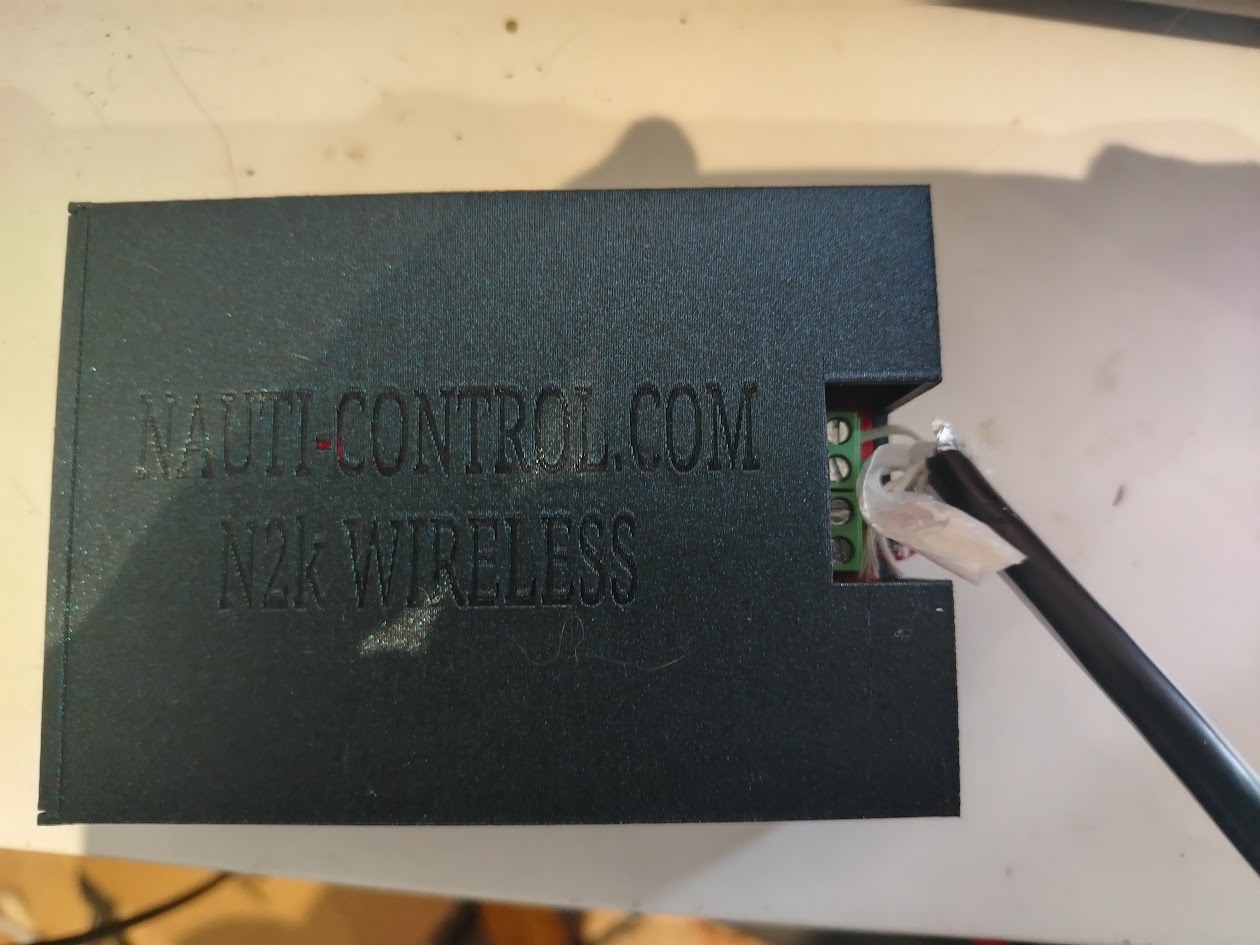

Mike Rattray (verified owner) –
After a few emails and photos of my yachts Raymarine network Phil advised I go with the N2K controller.
Controller arrived in 4 days to New Zealand! Plug and play installation which even I could manage.
iPhone connects straight away with the app which allows autopilot control from anywhere on the boat. Dashboard shows all the network data I need right on my phone.
This will be a game changer for me. I have been holding off buying a Raymarine wireless autopilot remote mainly due to the price and not wanting another remote in my pocket.
Amazing box of tech for the money and great support from Phil.
