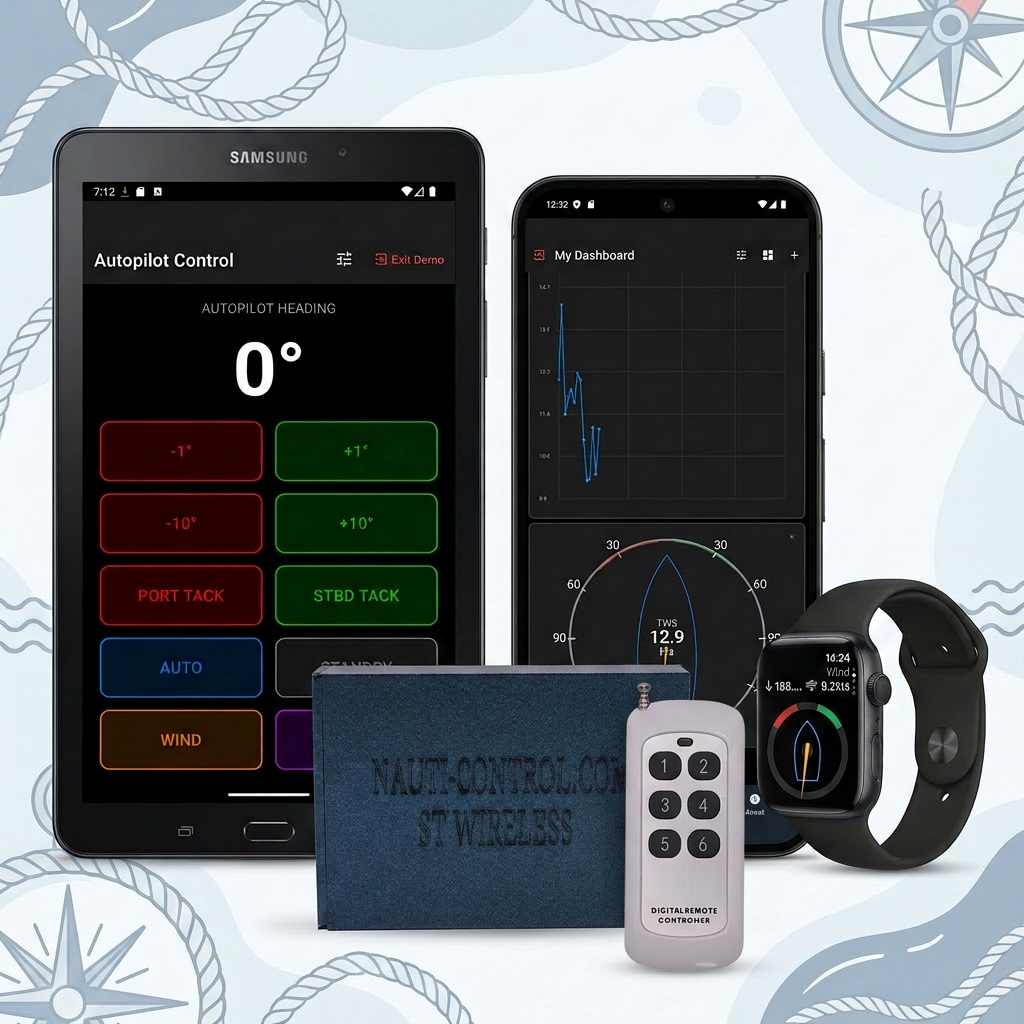

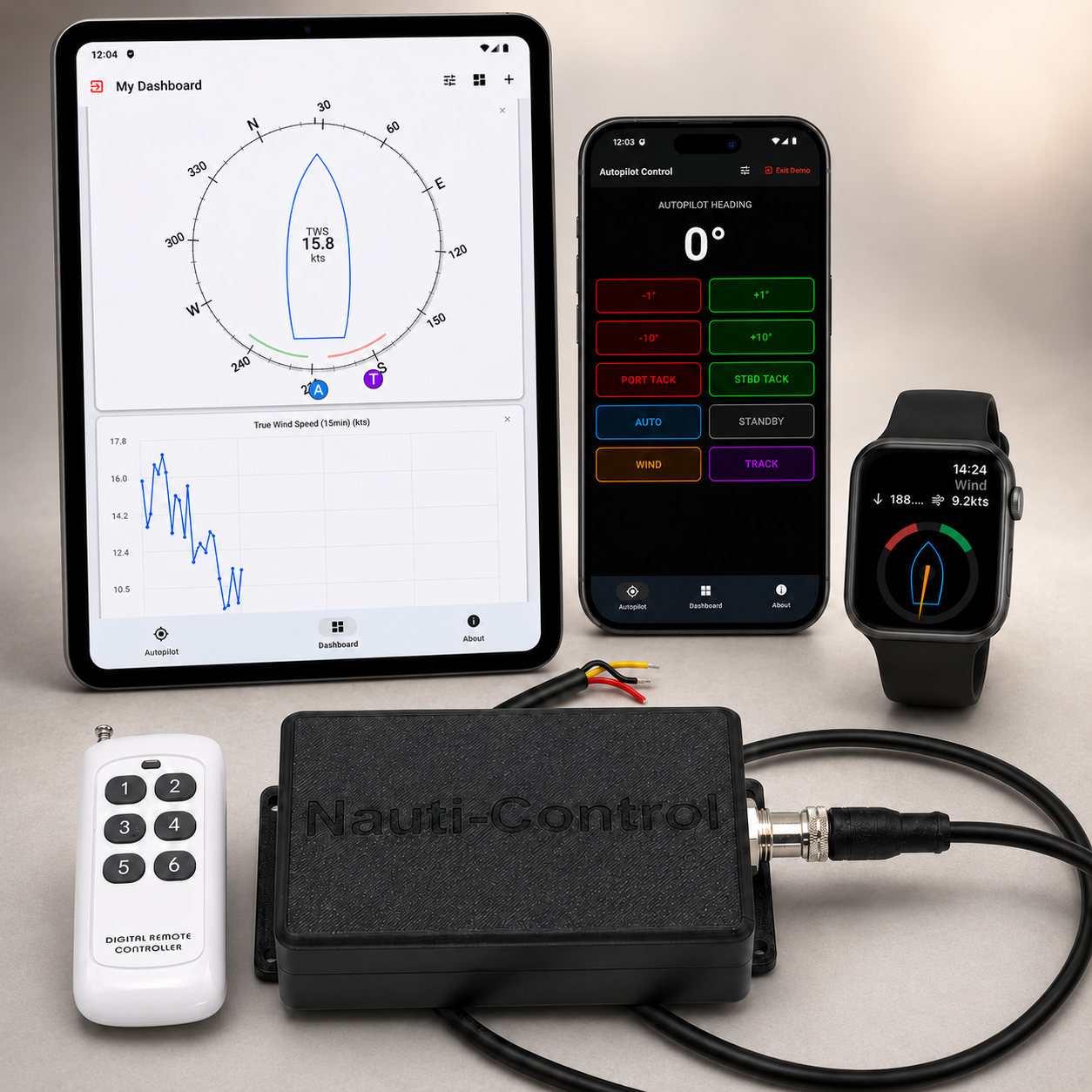

A SeaTalk 1 gateway for classic Raymarine and Autohelm pilots — ST1000 through ST8000, Type 100–400, SmartPilot and SPX. Wire it into the SeaTalk bus, then control the pilot and stream live boat data from your watch, phone or the included 6-button remote.

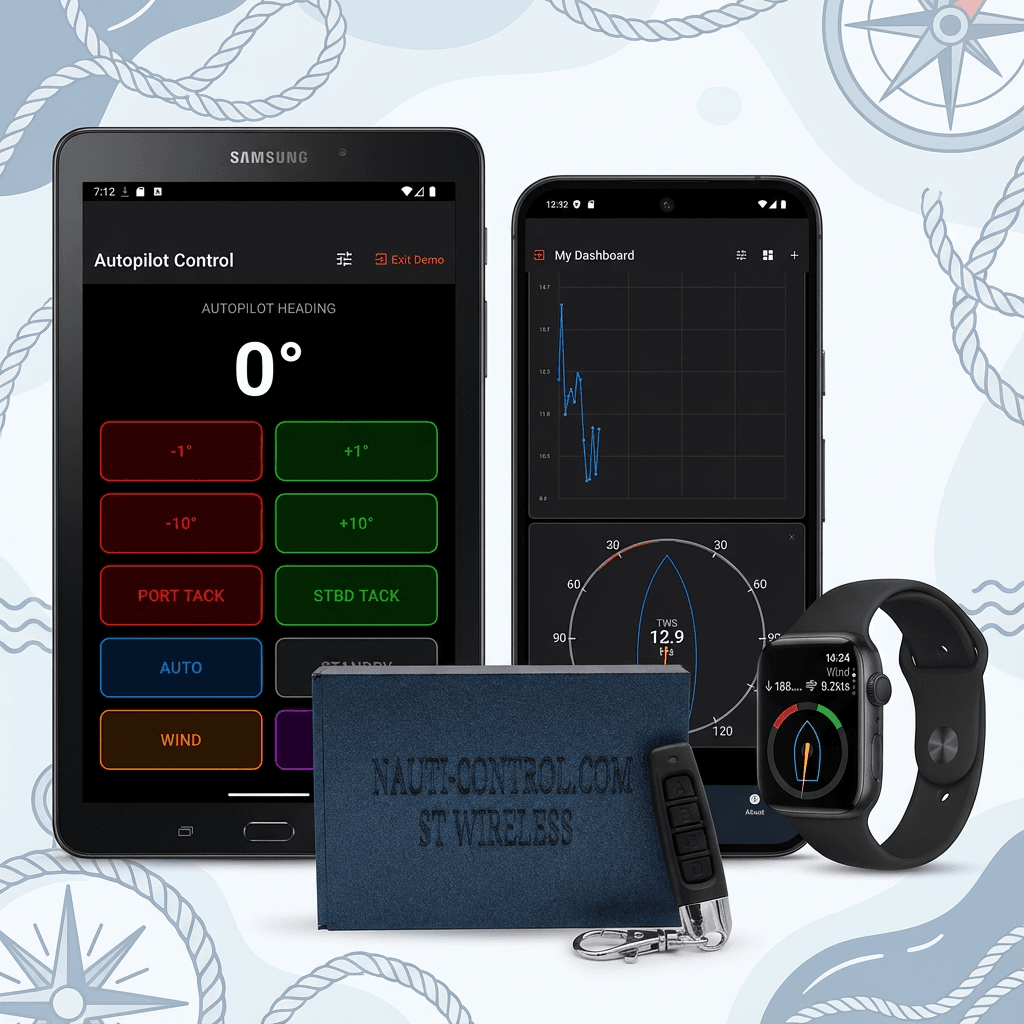

- Wireless autopilot control from the remote, phone, tablet or watch
- Streams SeaTalk data over Wi-Fi and Bluetooth to the Nauti-Control apps and navigation software

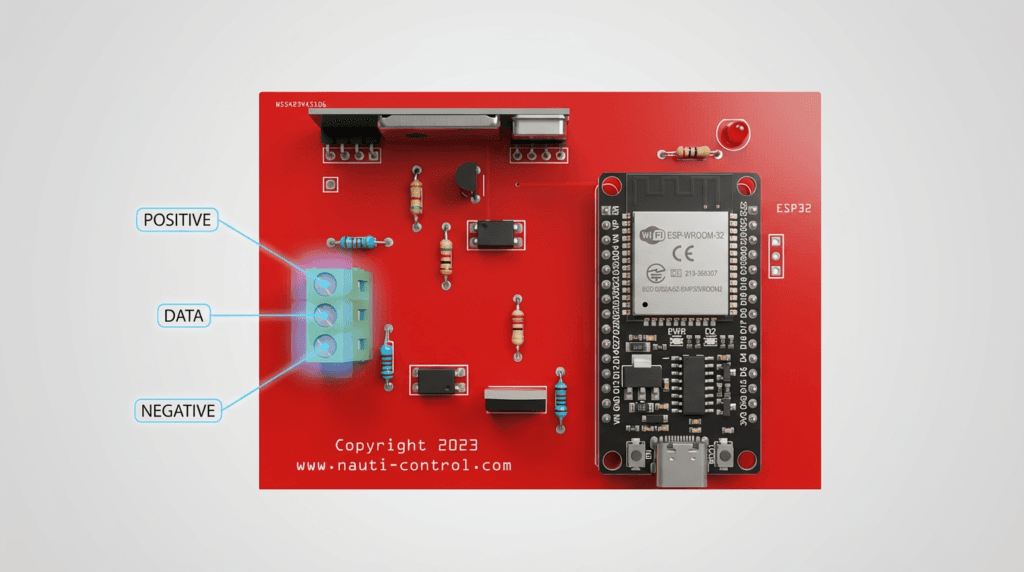

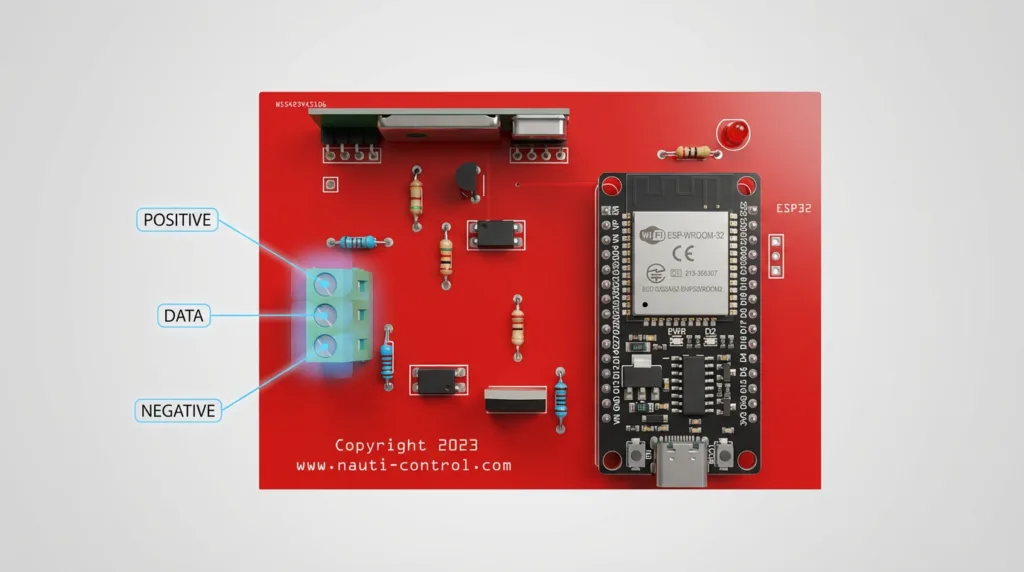

- 1 m 3-core SeaTalk wire included (red +, black −, yellow data)
- For SeaTalk 1 only — Evolution / NMEA 2000 boats need N2K Wireless
Wireless boat data
Converts SeaTalk to Wi-Fi and Bluetooth.

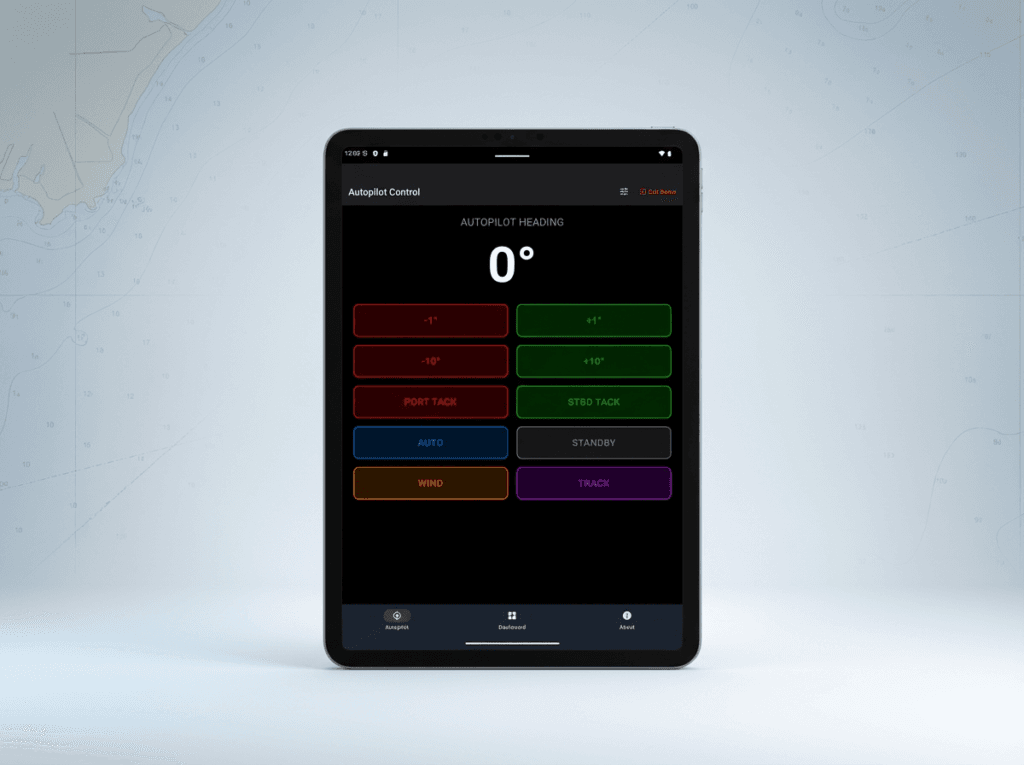

Autopilot control
Standby, Auto, Wind, Track and 1° / 10°, where the pilot supports those modes.
SeaTalk 1 native
Wire into the existing SeaTalk bus. No plotter upgrade.
What data is available?
Live data from the SeaTalk 1 bus, sent over Wi-Fi, Bluetooth and NMEA 0183 TCP.

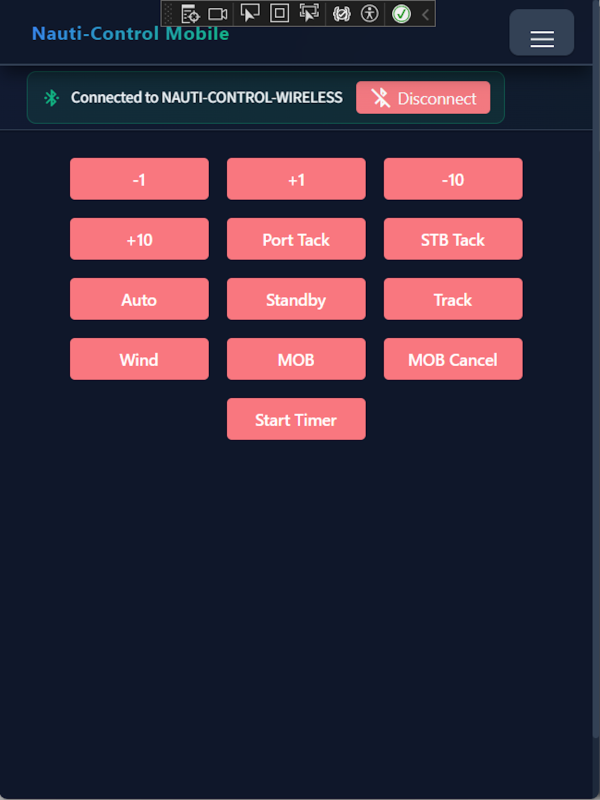

Autopilot and control
- Mode and status (Auto / Standby)
- Locked heading and commanded course
- Course adjustments (1° and 10°)
- Engage and disengage
- Pilot availability and SeaTalk bus status
Heading, speed and depth
- Compass heading
- Speed through water (STW)
- Depth below transducer

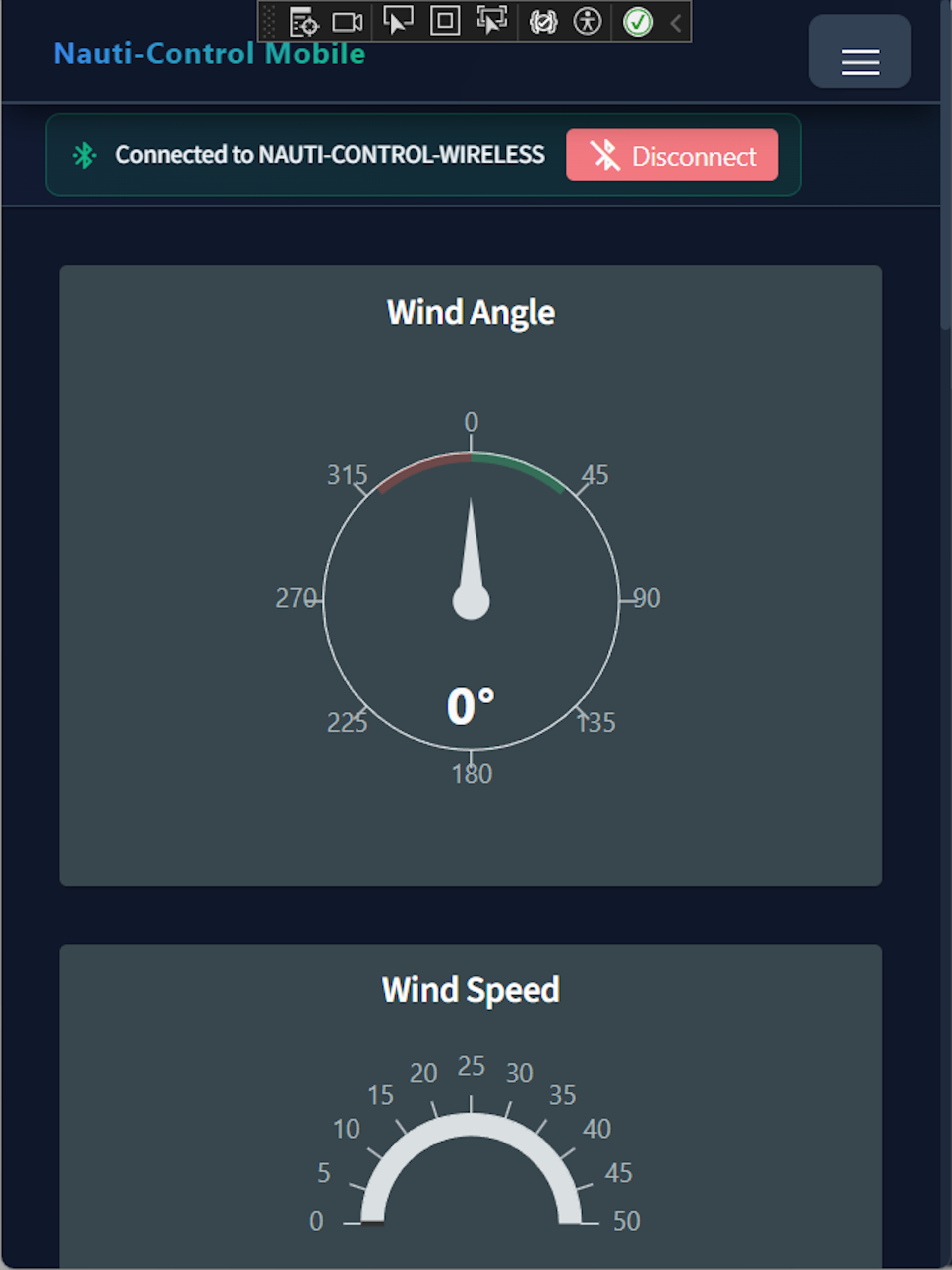

Wind
- Apparent wind angle
- Apparent wind speed
GPS and navigation
- Position (latitude / longitude)
- Speed over ground (SOG)
- Course over ground (COG)
- Altitude
- GPS fix quality, satellite count and HDOP
Waypoint and route
- Cross-track error (XTE)
- Waypoint bearing and distance
- Destination bearing and range
- Arrival status
Compatible SeaTalk 1 autopilots
For classic Raymarine and Autohelm SeaTalk 1 systems. Compatible with the pilots listed below.
- ST1000 / ST1000+, ST2000 / ST2000+, ST3000
- ST4000 / ST4000+, ST5000 / ST5000+
- ST6000 / ST6000+ / ST6001 / ST6002
- ST7000 / ST7000+ / ST7001 / ST7002
- ST8000 / ST8000+ / ST8001 / ST8002
- Type 100 / 150 / 300 / 400
- SmartPilot S1 / S1G / S2 / S2G / S3 / S3G
- SmartPilot X-Series SPX-5 / SPX-10 / SPX-30 / SPX-Solenoid
Raymarine Evolution, Simrad and B&G on NMEA 2000 or SeaTalk NG need N2K Wireless.

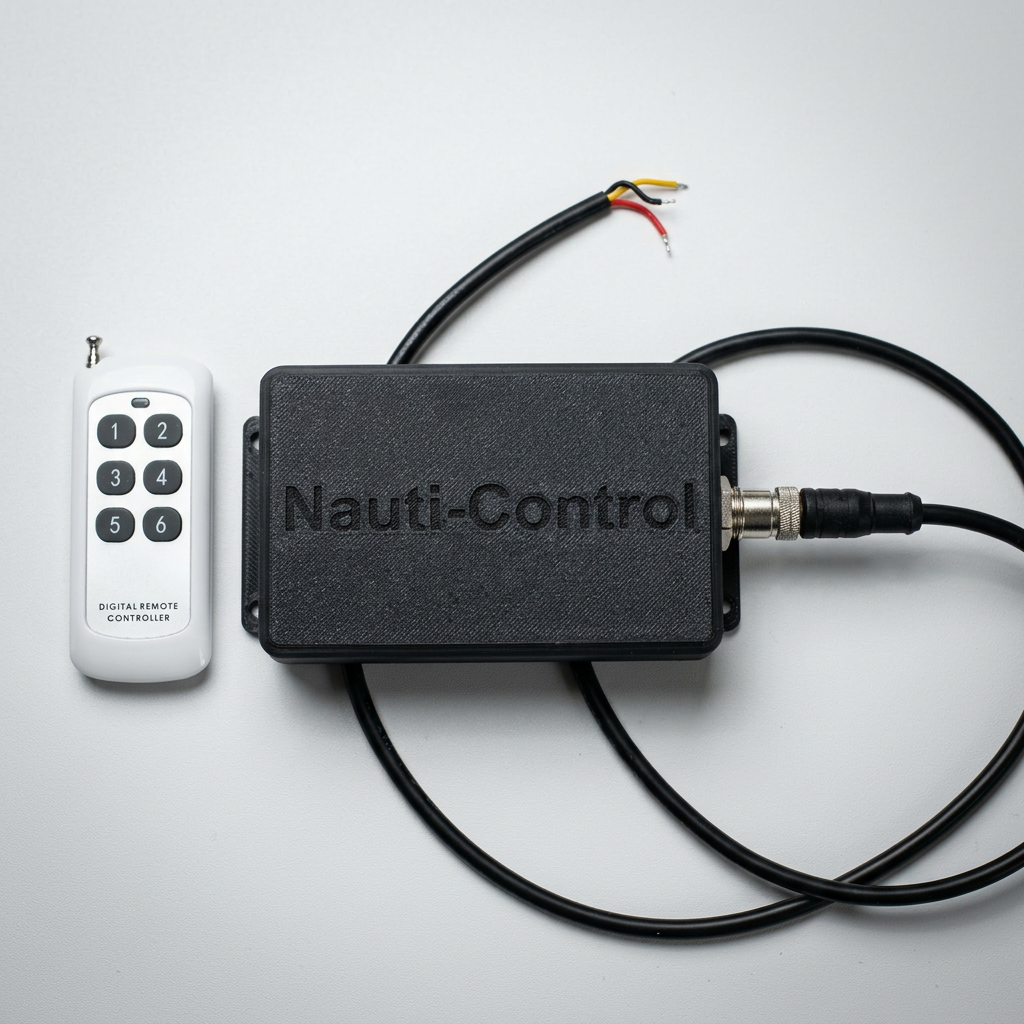

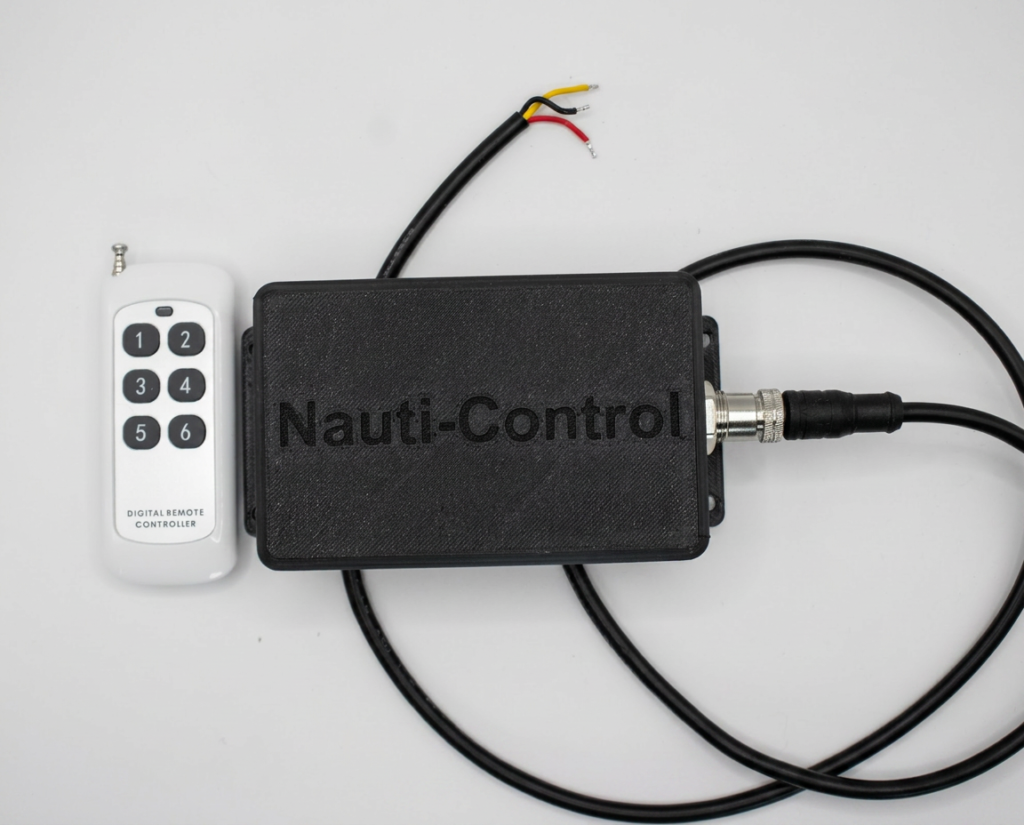

What is included

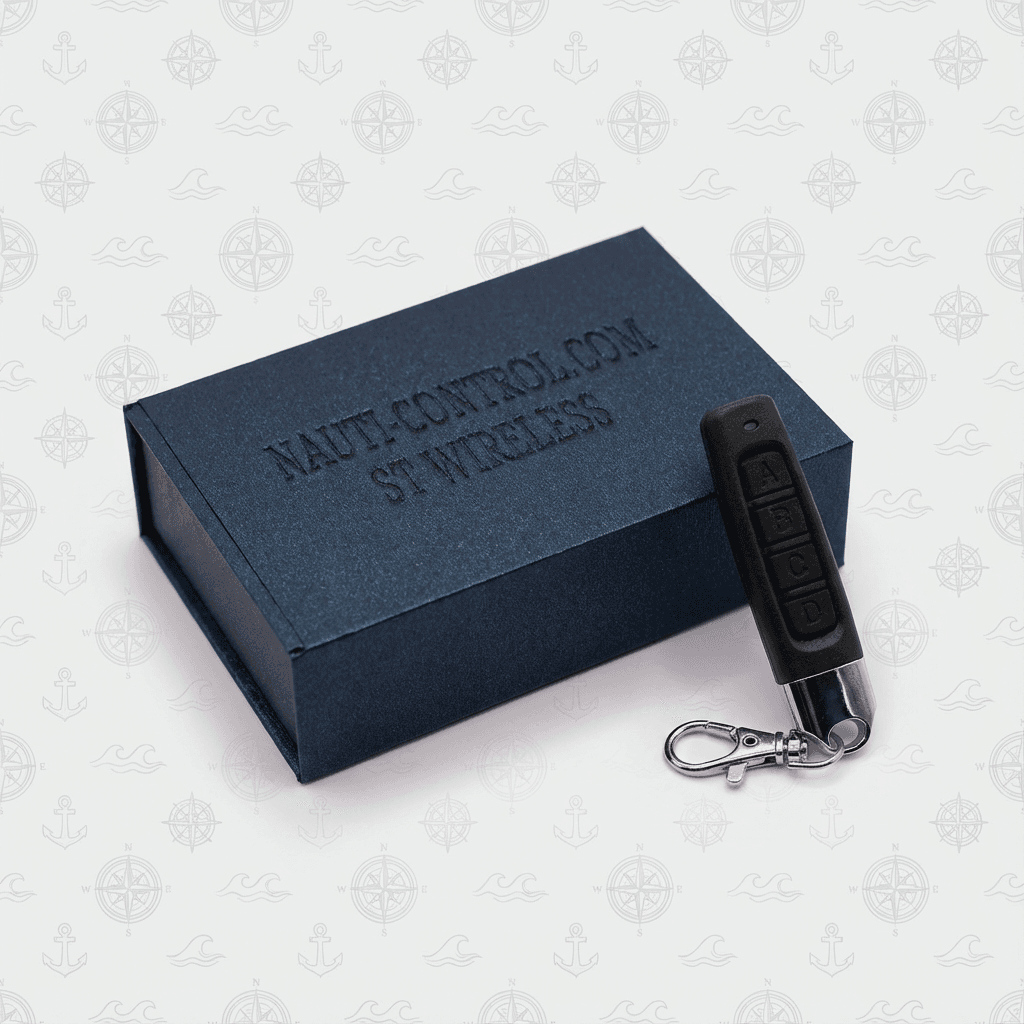

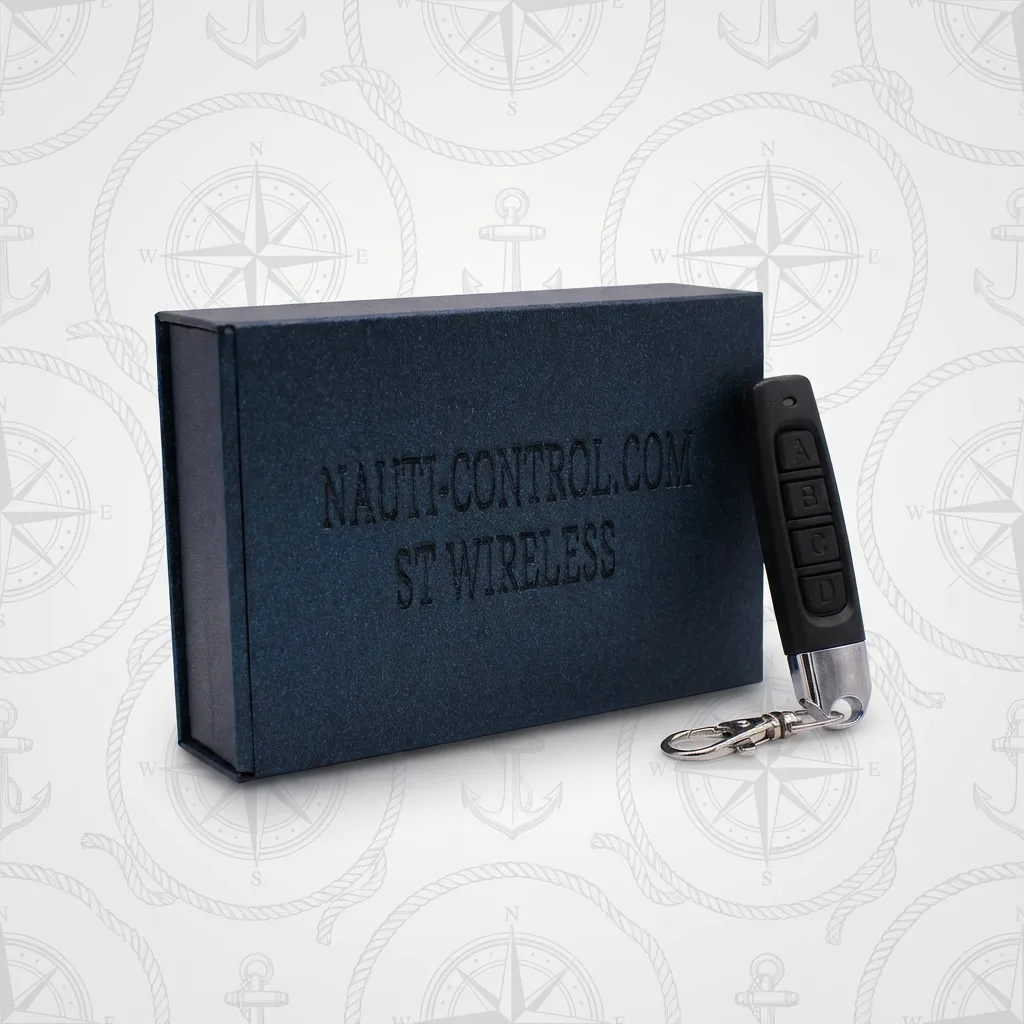

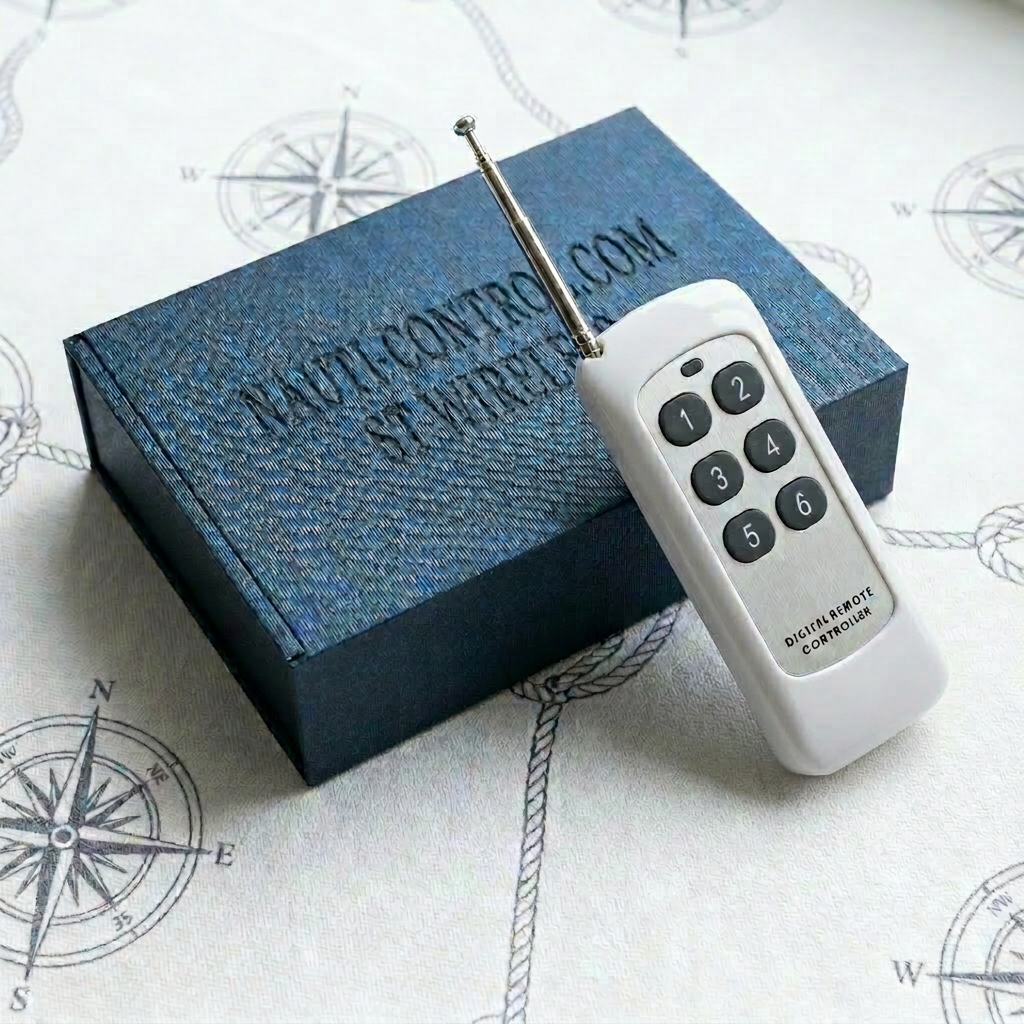

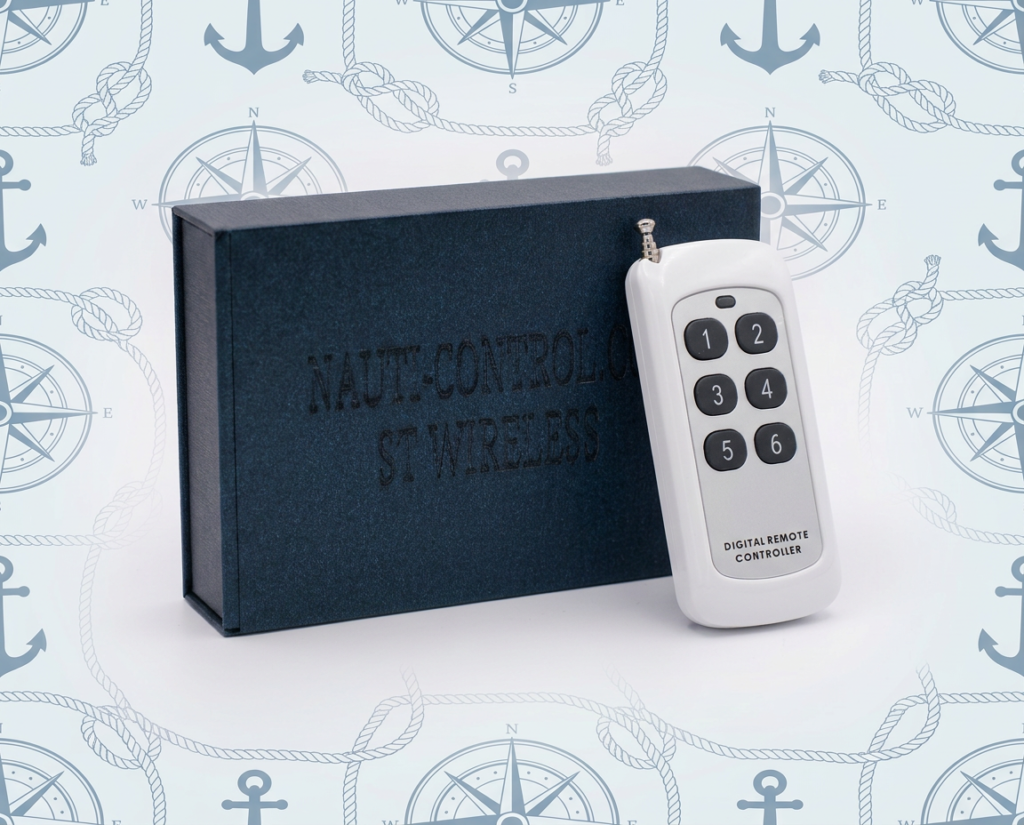

- ST Wireless Controller

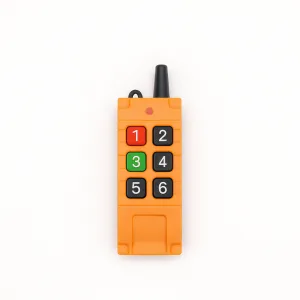

- 6-button fixed random code remote
- 1 m 3-core SeaTalk wire (red +, black −, yellow data)
Supplementary control only. The skipper stays responsible for the vessel.
